RXB29

RXB29

ASK Receiver Modules

ask downloads
PDF Downloads

Product Key Features

§ Frequancy: 315M/433.92M/868.35 MHz(others available);
§ High sensitivity: -110dBm@433.92 1kbps BER10E-2;
§ supply voltage: VCC= 3.3 to 5.5 V;
§ IF band: 230KHz;
§ low power cosumption: 3.9mA@315M, 6mA@433.92M,9mA@868.35M;
§ Wide operating temperature;
§ Excellent selectivity and noise rejection;
§ Easy for applica;
§ Analog RSSI Output(only for V2.0) ;
§ European pin-out.

Product Application

?? Garage door and gate openers
?? Remote controls
?? Remote fan and light control
?? Smart home system
?? Alarm and security system

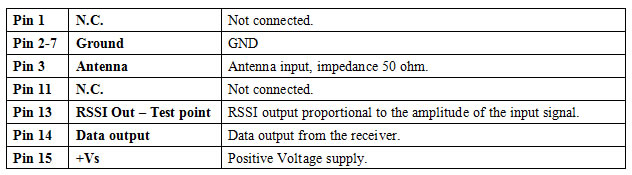

Pin Assignment
