HomeProductsASK Receiver Modules RXB7
RXB7

RXB7

ASK Receiver Modules

ask downloads
PDF Downloads

Product Key Features

§ Lost Cost 315/433.92/868/914.5MHz ASK/OOK Receiver;

§ Low Working Voltage 3.0V~5.5V;

§ Low Current :4mA @315MHz, 6mA @433.92MHz,9mA@868.35MHz:

§ Power down mode with very low supply current (30nA typ) ;

§ High Sensitivity: -110dBm normally; -108dBm~110dBm@868MHz ;

§ Data Rate:>9.6kbps;

§ Operating Temperature:-40℃~+85℃;

§ RSSI output option;

§ Small package: SIL-8pins(2.54mm of pin distance);

§ Lead Temperature(soldering, 3s): 330 degrees centigrade;

§ Dimension: 43.2mm(L)*12.3mm(W)*5mm(H);

Product Application

§ Security System

§ Wireless Remote Control Car

§ Wireless Remote Control Robot

§ Automatic Power Switch Control

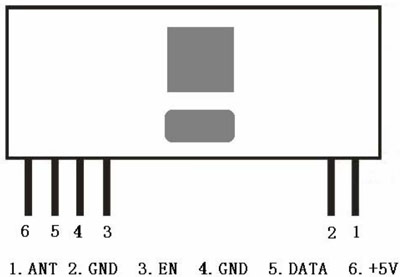

Pin Assignment

rxb7
