HomeProductsASK Transmitter Modules TX1
         tx1

TX1

ASK Transmitter Modules

ask downloads
PDF Downloads

Product Key Features

§ the rang can be upto 300-500m matching with RXB8.
§ Operation voltage: VCC= 3 to 15 V;
§ Frequancy: 315MHz/433.92MHz(others are available);
§ High output power: >10dBm;
§ Frequency tolerance: ±75 KHz;
§ Current: 10mA;
§ Operating temperature: -20℃~+60℃
§ Small Size with Size of PCB: 11x16x5.5MM;
§ Bit rate: <3kbps;

§ Circuit Shape: PLL;

Product Application

﹡ Remote gate controls

﹡ Remote keyless entry

﹡ Car alarm systems

﹡ wireless security systems

﹡ Automation systems

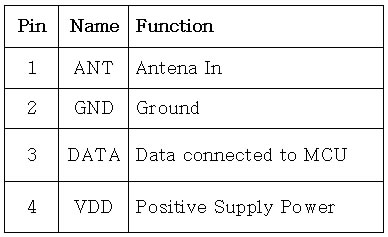

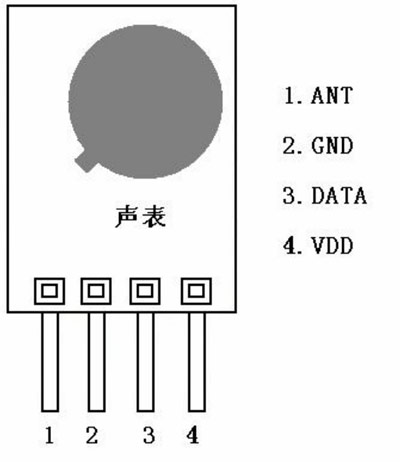

Pin Assignment

tx1
tx1
